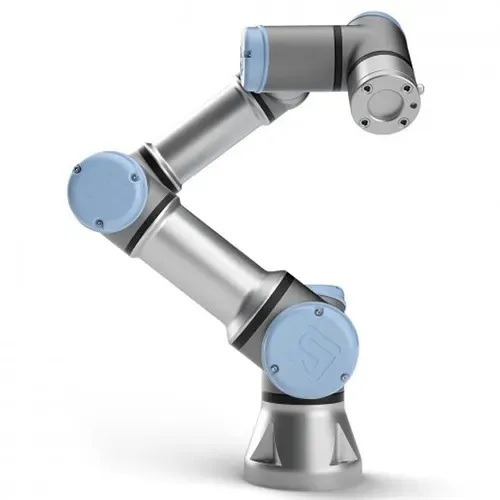

Universal Robot UR3
Universal Robot UR3
Universal Robot UR3

Universal Robot UR3

Please Login for Price

Reach: 500 mm

Payload: 3 Kg

Degree of freedom: 6

Linear speed: 1 m/s

UR3 is the smallest and lightest cobot in the UR range. A compact 11 kg robot with a load capacity of up to 3 kg. With a range of 500 mm, a precision of 0.1 mm, and 360-degree rotation on all joints, the robot is perfect for automating manual tasks.

    Share it On:

    Description

    Unbox Industry presents Universal Robots UR3 is the smallest and lightest cobot in the UR range. A compact 11 kg robot with a load capacity of up to 3 kg. With a range of 500 mm, a precision of 0.1 mm, and 360-degree rotation on all joints, the robot is perfect for automating manual tasks.

    Easy programming: Patented technology lets operators with no programming experience quickly set up and operate our cobots with intuitive, 3D visualization. Simply move the robot arm to desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet.

    Fast Setup: Universal Robots has revolutionized cobot set-up, reducing typical robotic deployment measured in weeks to a matter of hours. The average set-up time reported by our customers is only half a day.

    Flexible Use: Universal Robots are lightweight, space-saving, and easy to re-deploy to multiple applications without changing your production layout. Moving the cobot to new processes is fast and easy, giving you the agility to automate almost any manual task, including those with small batches or fast changeovers. The cobot is able to re-use programs for recurrent tasks.

    Collaborative: Now you can replace human operators in dirty, dangerous, and dull jobs to reduce repetitive strain and accidental injuries. The safety system of our robots is approved and certified by TÜV (The German Technical Inspection Association).

    Specifications

    Degree of Freedom
    6
    Payload
    3 kg
    Reach or Arm Length
    500 mm
    Repeatability
    ±0.01mm
    Joint Working Range
    ±360°
    Joint Speed
    All wrist joints: 360 degrees/sec. Other joints: 180 degrees/sec.
    Typical Tool Speed
    1 m/s
    IP Rating
    IP54
    Power Source
    12/24 V
    Weight
    11 Kg
    Communication
    TCP/IP, Modbus TCP, Ethernet/IP, Profinet, ROS/ROS2

    Product Videos

    video thumbnail
    video thumbnail
    video thumbnail
    video thumbnail

    Product Videos

    video thumbnail
    video thumbnail
    video thumbnail
    video thumbnail

    Download Files

    UR3_Datasheet.pdf
